Product selector guide

The following table breaks down the key features of the entire suite of Chargetek battery chargers. Detailed technical information for these units can be found by clicking on the links in the left column.

AC/DC battery chargers


Series

Input power

Waterproof
Number
of banks

Amps
Number
of stages

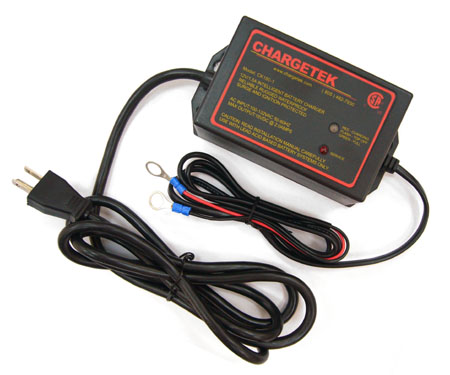

CK 150

AC: 115V or 230V Yes One 12V model: 1.5 Amps
24V model: 0.75 Amps
Three
CT 150

AC: 115V or 230V Yes One 12V model: 1.5 Amps
24V model: 0.75 Amps
Two
CT 500

AC: 115V or 230V Yes Two 12V model: 5 Amps
24V model: 2.5 Amps
Three
TPRO

AC: 115V or 230V Yes Two or three 12V model: 20 Amps total Three
RTIC-WP

AC: 115V or 230V Yes One 12V model: 20 Amps
24V model: 10 Amps
36V model: 7 Amps
48V model: 5 Amps
Three
RTIC-FC

AC: 115V or 230V No One 12V model: 20 Amps
24V model: 10 Amps
36V model: 7 Amps
48V model: 5 Amps
Three



DC/DC battery chargers


Series

Input power

Waterproof
Number
of banks

Amps
Number
of stages
DPIC

DC: 9V to 80V Yes One 12V model: 3 Amps
24V model: 2 Amps
36V model: 1 Amp
48V model: 1 Amp
Four
DPIC-WP

DC: 9V to 80V Yes One 12V model: 20 Amps
24V model: 10 Amps
36V model: 7 Amps
48V model: 5 Amps
Four
DPIC-FC

DC: 9V to 80V No One 12V model: 20 Amps
24V model: 10 Amps
36V model: 7 Amps
48V model: 5 Amps
Four



Lithium battery chargers


Series
Input power Number of banks Relay /
opto-signals

SMBus

Ethernet

Serial bus
APLC

AC: 85V to 270V One Optional Optional Level 2 or Level 3 Optional Optional

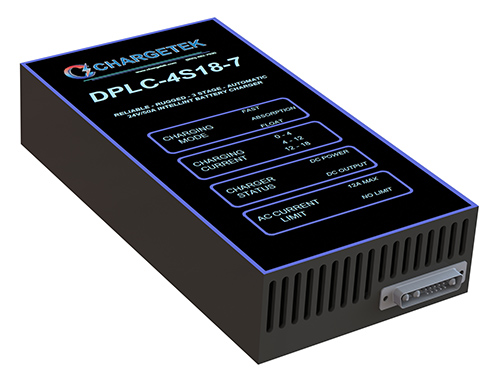

DPLC

DC: 12V to 500V One Optional Optional Level 2 or Level 3 Optional Optional
